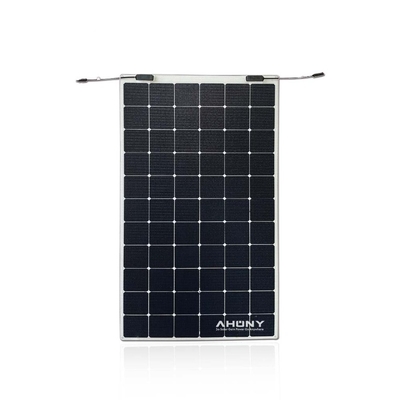

yacht rv boat step walk on use power sunpower semi rigid solar panel 225 watt solar panel 125mmx125mm

4 Pieces
MOQ
$319.50(4 - 99 Pieces) $308.25(100 - 499 Pieces) $297.00(>=500 Pieces)
Prijs
yacht rv boat step walk on use power sunpower semi rigid solar panel 225 watt solar panel 125mmx125mm
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: eMarvel 225w
Cell size: 125mmx125mm
Type: IBC
Panel Dimensions: 800*1460*5mm
Panel Efficiency: 22.6%
Certificate: CE ROHS SG S IEC
Warranty: 2years
Solar cell: Sunpower
Product name: walkable rigid solar panel
Weight: 10
Basis informatie
Certificering: CE ROHS SG S IEC
Model Number: eMarvel 225w
Betalen & Verzenden Algemene voorwaarden
Packaging Details: corton box for flexible solar panel for RV camping boat super light solar panel
Supply Ability: 1000 Piece/Pieces per Month
Productomschrijving

Model No. eMarvel 225w
Product Name Rigid light solar panel
Maximum Power[Wp] 225
Solar Cell SunPower Maxeon Gen III Back Contact Cell
Cell Array[Pcs] 6*11
Cell Efficiency 22.60%
Size[mm] 800*1460*5mm
Max Power Voltage Vmp[V] 19.14
Max Power Current Imp[A] 11.76
Open Circuit Voltage Voc[V] 22.59
Short Circuit Current Isc[A] 12.70
Net.Weight[kg] 10.00
Power tolerance[%] ±5%
NOCT[℃] 45±2
Operating Temperature[℃] -40/+85
Temperature Coefficient Pmax[%/K] -0.3
Temperature Coefficient Voc[[%/K] -1.74mV
Temperature Coefficient Isc[[%/K] 0.05
Maximum System Voltage[V] 1000 V
Maximum Reverse Current[V] 10A
Flame retardancy UL94 VTM-0
Certification and test CE,ROHS,SGS,IEC salt mist,High temp humidity test
Surface/Backsheet Japan ETFE/white plastic
Maximum bend radius(θ)
Cables and Connectors 40cm 2.5mm² cable with MC4
Warranty[Years] 2
Standard Test Conditions STC: 1000W/m², AM 1.5 and cell temp 25°C
Other notes round corner R10,with silicon back up holes
Package 1pcs/Polyethylene foam(EPE Foam),then in 1 carton box
